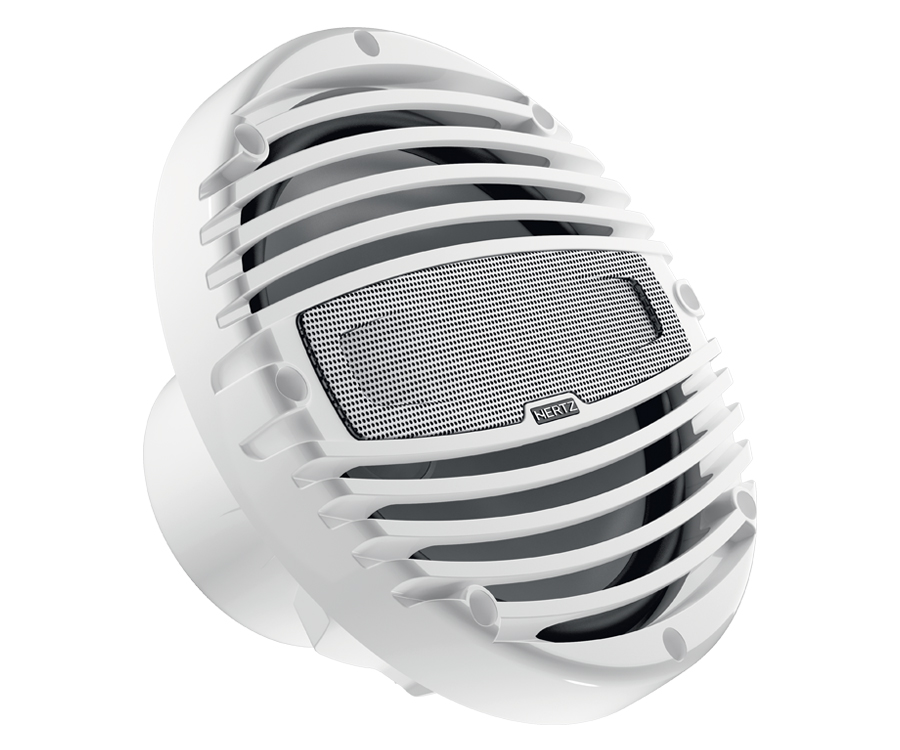

Skip to content Hertz HMX 8 / C
$ 91.79
Availability:
- Description 1. Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust). 2. 1.4” Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL. 3. Sound-transparent stainless steel tweeter mesh grille providing efficient high-frequency transfer, attractive look and a rock-solid protection. 4. Long-throw 32 mm (1.26”) voice coil woofer fine-tuned for infinite baffle application featuring polypropylene cone injected with UV inhibitors and co-molded Santoprene surround. 5. Aramid fiber spider with silicone-insulated lead wires ensuring durability and constant performance over time. 6. FEM optimized high-excursion mobile equipment driven by a massive magnetic group encapsulated into a marine-grade polymer injected basket. 7. Sealed built-in crossover with resettable solid-state tweeter protection circuit. 8. Gold-plated corrosion resistant terminals. Component HI-END COAX Size mm (in.) 224 (8.8) Power Handling – Continuous W 100 Power Handling – Peak W 200 Impedance Ohm 4 Depth mm (in.) 123 (4.84) Woofer Voice Coil Ø mm (in.) 32 (1.26) Tweeter Voice Coil Ø mm (in.) 20 (0.8) Frequency Response Hz 45 ÷ 25k Woofer Magnet size D x d x h mm (in.) 90 x 40 x 20 (3.54 x 1.57 x 0.79) Tweeter Magnet size D x h mm (in.) 19,7 x 3 (0.78 x 0.12) Weight of one speaker kg (lb.) 1,66 (3.66) Woofer Magnet High density flux ferrite Tweeter Magnet Neodymium Cone Polypropylene with UV inhibitors Dome PEI Xmech mm (in.) ±8,5 (0.33) Technical Specs D mm 174 Re Ohm 3,1 Fs Hz 50 Le mH 0,52 Vas I 29,46 Mms g 27,3 Cms mm/N 0,37 BL T*m 6,6 Qts 0,58 Qes 0,61 Qms 11 Spl dB 91 Electro-acoustic Specs Physical Specs A 225 mm 8.86 in. B 180 mm 7.09 in. C 123 mm 4.84 in. D 91 mm 3.58 in. F 32 mm 1.26 in. Frequency response
