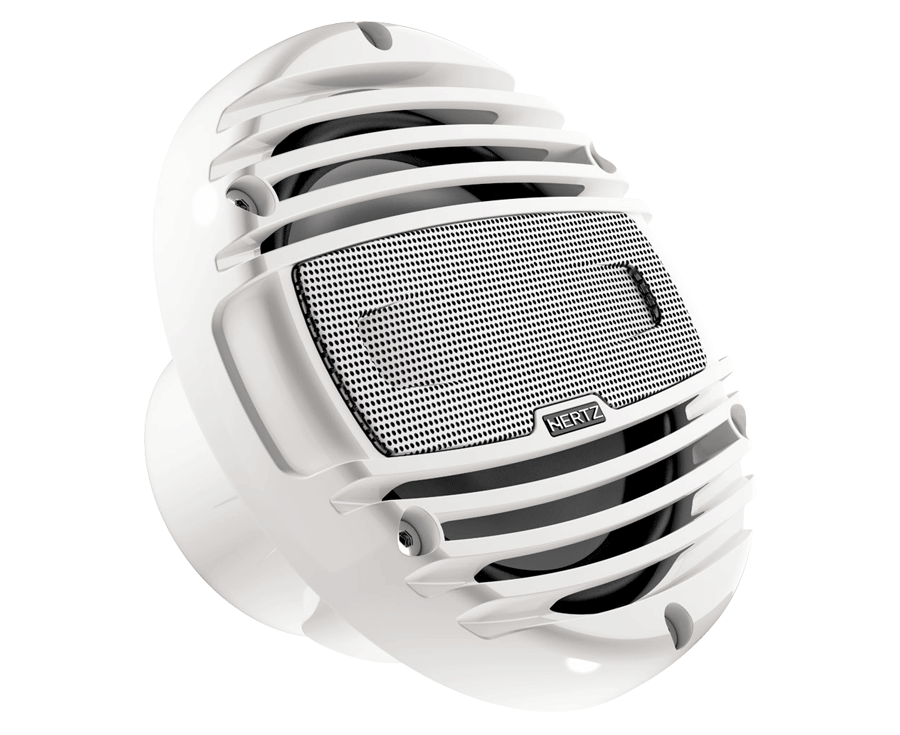

Skip to content Hertz HMX 6.5 / C
$ 97.30
Availability:
- Description 1. Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust). 2. 1.4” Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL. 3. Sound-transparent stainless steel tweeter mesh grille providing efficient high-frequency transfer, attractive look and a rock-solid protection. 4. Long-throw 25mm (1”) voice coil woofer fine-tuned for infinite baffle application featuring polypropylene cone injected with UV inhibitors and co-molded Santoprene surround. 5. Aramid fiber spider with silicone-insulated lead wires ensuring durability and constant performance over time. 6. FEM optimized high-excursion mobile equipment driven by a massive magnetic group encapsulated into a marine-grade polymer injected basket. 7. Sealed built-in crossover with resettable solid-state tweeter protection circuit. 8. Gold-plated corrosion resistant terminals. Component HI-END COAX Size mm (in.) 165 (6.5) Power Handling – Continuous W 75 Power Handling – Peak W 150 Impedance Ohm 4 Depth mm (in.) 95,6 (3.76) Woofer Voice Coil Ø mm (in.) 25 (1) Tweeter Voice Coil Ø mm (in.) 20 (0.8) Frequency Response Hz 50 ÷ 25k Woofer Magnet size D x d x h mm (in.) 78,5 x 32 x 17 (3.09 x 1.26 x 0.67) Tweeter Magnet size D x h mm (in.) 19,7 x 3 (0.78 x 0.12) Weight of one speaker kg (lb.) 1 (2.2) Woofer Magnet High density flux ferrite Tweeter Magnet Neodymium Cone Polypropylene with UV inhibitors Dome PEI Xmech mm (in.) ±6,65 (0.26) Technical Specs D mm 125 Re Ohm 3,5 Fs Hz 65 Le mH 0,53 Vas I 8,8 Mms g 14 Cms mm/N 0,4 BL T*m 5,2 Qts 0,7 Qes 0,75 Qms 11,5 Spl dB 89 Electro-acoustic Specs Physical Specs A 172,2 mm 6.78 in. B 128 mm 5.04 in. C 95,6 mm 3.76 in. D 69 mm 2.72 in. F 26,6 mm 1.05 in. Frequency response
