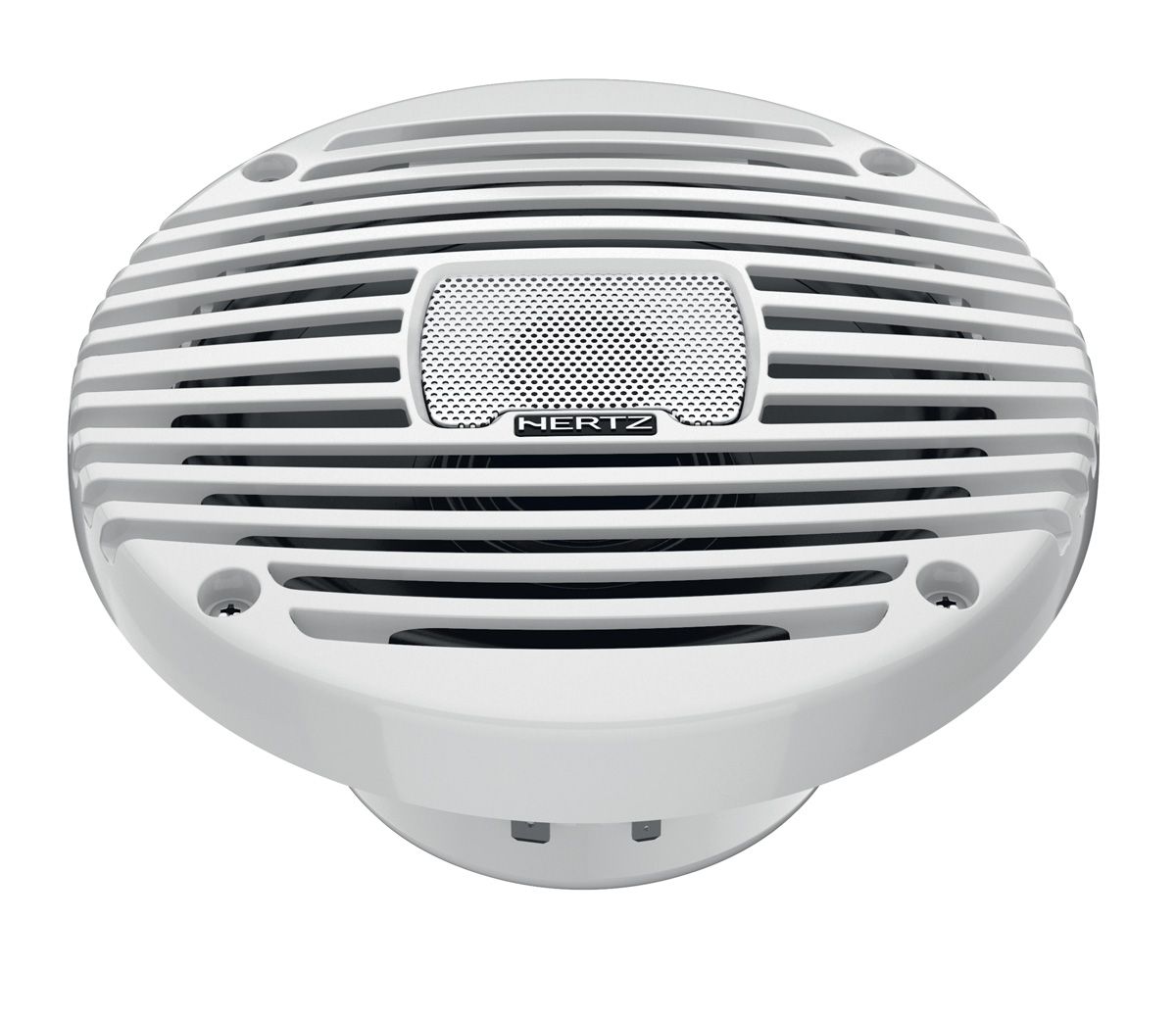

Skip to content Hertz HEX 6.5 M – TW / TC
$ 98.87
Availability:
- Description 1. Hertz Pure Marine Certified Product stamp featuring the IP65 protection grade, ASTM-D4329 standards for UV resistance, and ASTM-B117 for salt fog operability. 2. High-efficiency tweeter designed with FEM simulation to maximize off-axis emission, typical of in-boat install. 3. Sound-transparent tone-on-tone mesh grille with twist and lock locking system, providing an elegant style and rock-solid protection. 4. Woofer with 25 mm (1”) voice coil fine-tuned for infinite baffle application featuring silicone insulated lead wire for durability. 5. Sealed built-in crossover with resettable solid-state tweeter protection circuit. 6. Nickel-plated corrosion-resistant terminals. Component COAX Size mm (in.) 165 (6.5) Power Handling – Continuous W 50 Power Handling – Peak W 100 Impedance Ohm 4 Depth mm (in.) 85 (3.25) Woofer Voice Coil Ø mm (in.) 25 (1) Tweeter Voice Coil Ø mm (in.) 13 (0.5) Frequency Response Hz 50 ÷ 23k Woofer Magnet size D x d x h mm (in.) 85 x 32 x 15 (3.35 x 1.26 x 0.59) Tweeter Magnet size D x h mm (in.) 12,9 x 2 11 x 1,9 (0.51 x 0.08 0.43 x 0.07) Weight of one speaker kg (lb.) 1 (2.2) Woofer Magnet High density flux ferrite Tweeter Magnet Neodymium Cone Polypropylene with UV inhibitors Dome PEI Xmech mm (in.) ±4,8 (0.19) Technical Specs D mm 125 Re Ohm 3,3 Fs Hz 78 Le mH 0,109 Vas I 6,52 Mms g 13,5 Cms mm/N 0,31 BL T*m 4,8 Qts 0,82 Qes 0,95 Qms 6,1 Spl dB 88 Electro-acoustic Specs Physical Specs A 172 mm 6.77 in. B 128 mm 5.04 in. C 85 mm 3.25 in. D 60,5 mm 2.38 in. F 24,5 mm 0.96 in. Frequency response
