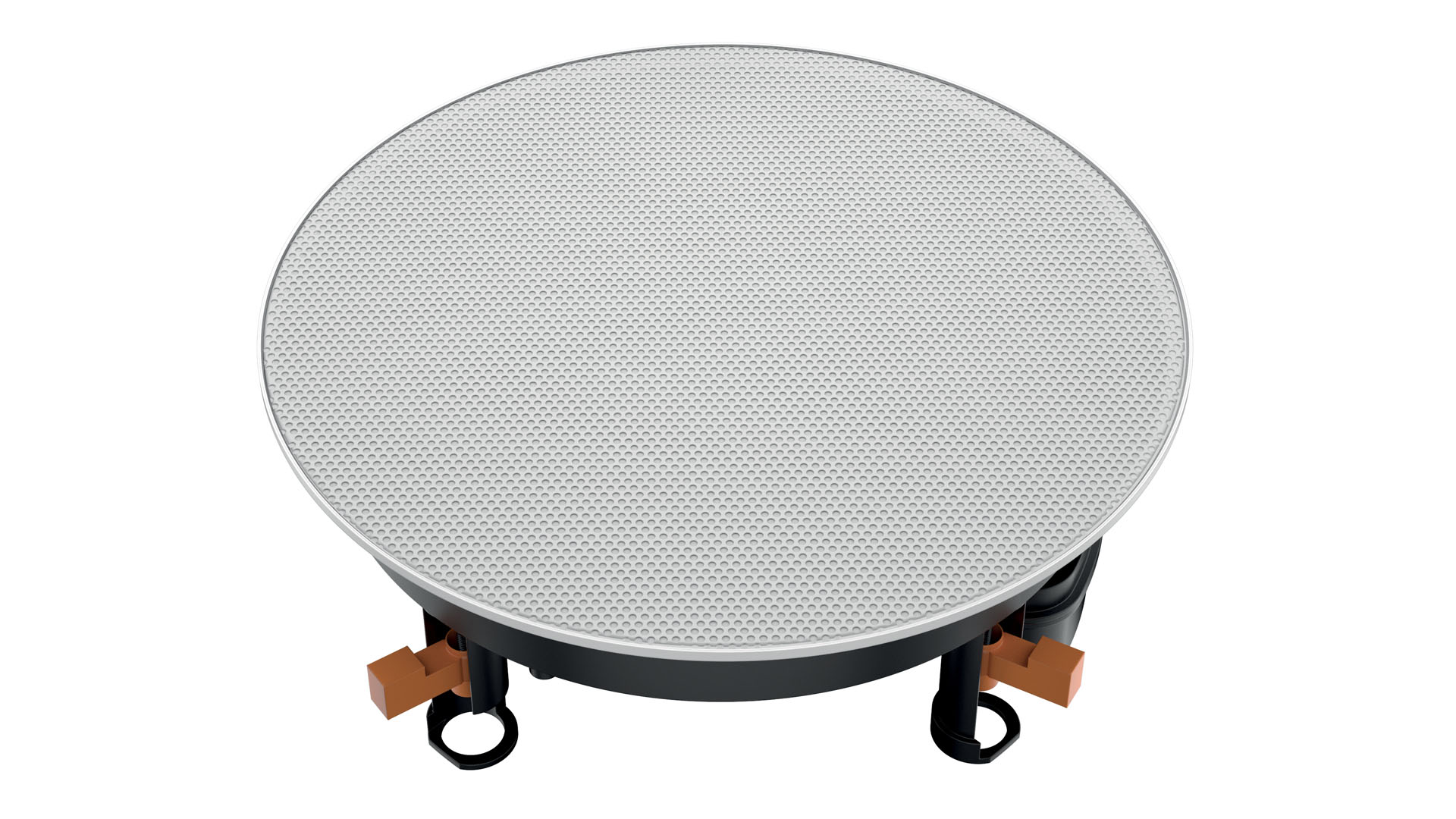

Skip to content Hertz HEX 6.5 IC-W
$ 99.87
Availability:
- Description 1. Hertz Pure Marine Certified Product stamp featuring IP65 protection grade, ASTM-D4329 standards for UV resistance and ASTM-B117 for salt fog operability. 2. Totally sealed design including coated crossover filter made by marine-grade PCB to prevent corrosion against salt fog. 3. Edgeless mesh grille with magnetic locking system providing near stealth in-wall/in-celling installation. 4. Crossover fine-tuned to optimize sound emission for in-wall/in-celling applications. 5. Marine certified 24 mm diaphragm soft dome tweeter designed with FEM simulation to maximize sound projection for in-wall and in-ceiling installation. 6. 25 mm (1”) voice coil woofer with 6 Ω impedance, optimized to be driven by any amplifiers system (12 volts, 24 volts, rack amps, …). 7. Silicone insulated lead wires for extended durability in outdoor application. 8. Fast and easy installation thanks to the robust hooking system. Component IN-CEILING COAX Size mm (in.) 165 (6.5) Power Handling – Continuous W 50 Power Handling – Peak W 100 Impedance Ohm 6 Depth mm (in.) 87 (3.43) Tweeter diaphragm mm (in.) 24 (0.9) Woofer Voice Coil Ø mm (in.) 25 (1) Tweeter Voice Coil Ø mm (in.) 20 (0.8) Frequency Response Hz 50 ÷ 22k Woofer Magnet size D x d x h mm (in.) 75 x 32 x 15 (2.95 x 1.26 x 0.59) Tweeter Magnet size D x h mm (in.) 19 x 3 (0.75 x 0.12) Weight of one speaker kg (lb.) 1.75 (3.86) Woofer Magnet High density flux ferrite Tweeter Magnet Neodymium Cone Polypropylene with UV inhibitors Dome Tetolon Xmech mm (in.) ≤4,8 (0.19) Technical Specs D mm 125 Re Ohm 5 Fs Hz 60 Le mH 0.32 Vas I 10.48 Mms g 14.2 Cms mm/N 0.50 BL T*m 5.3 Qts 0.81 Qes 0.98 Qms 4.8 Spl dB 88 Electro-acoustic Specs Physical Specs A 231 mm 9.08 in. B 203.5 mm 8.01 in. C 87 mm 3.43 in. D 81 mm 3.2 in. E 6mm 0.23 in.
